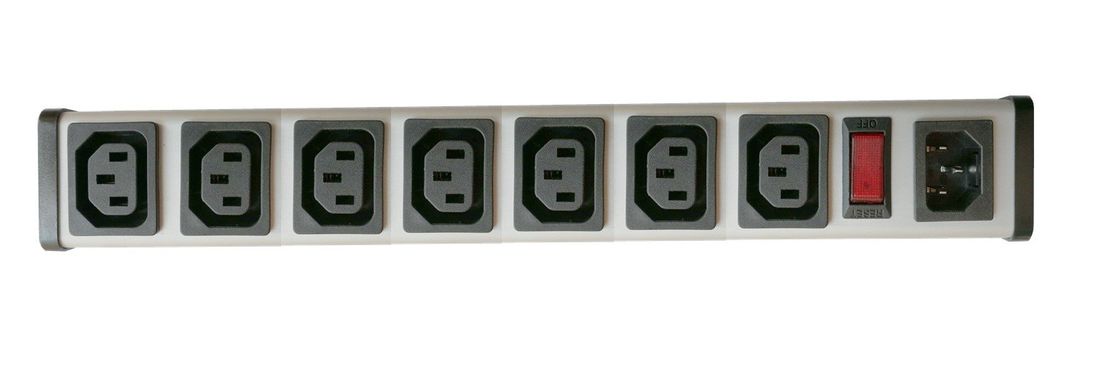

IEC320 Plug Adapter Power Cord Converter, 7Way IEC320 C14 Jacks Outlets Power Strip with 15a Overload Protector

IEC320 Plug Adapter Power Cord Converter, 7Way IEC320 C14 Jacks Outlets Power Strip with 15a Overload Protector

IEC320 Plug Adapter Power Cord Converter, 7Way IEC320 C14 Jacks Outlets Power Strip with 15a Overload Protector

Product Details:

Place of Origin: Zhejiang,China
Brand Name: SFC/OEM
Certification: UL C-UL
Model Number: SFC-IEC-723

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negoation
Packaging Details: EXPORTED STANDARD CARTON
Delivery Time: 25Days
Payment Terms: T/T, L/C
Supply Ability: 10000PCS
Contact Now
Detailed Product Description
Material: Aluminum Alloy Color: Silver Grey| Other
Rated Voltage: 125V Rated Current: 15A
Mounting: Metal Clips &Screw Mountiong Method: Horizontal Or Vertical Installation

IEC320 Plug Adapter Power Cord Converter, 7Way IEC320 C14 Jacks Outlets Power Strip with 15a Overload Protector



IEC320 Plug Adapter Power Cord Converter, 7Way IEC320 C14 Jacks Outlets Power Strip with 15a Overload Protector


Description
aluminium alloy UL approved power strips and with surge protective devices type 3 SPD. 4way,6way,8way,9way,10way,12way,15way,16w

SFC Jiashan Shengfeng Plastics & Electronics Co., Ltd SFC-IEC-X series power strip offers 15 amp, 125V multi-outlet AC power distribution in a convenient 12 to 72 inch mountable housing. Offers horizontal or vertical power distribution in rackmount, raceway, laptops cart and workbench applications etc. Includes6 to 16 NEMA 5-15R output receptacles with any inch center -to-center spacing, 5-25ft AC line cord and lighted power switch with circuit breaker and locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments.


Specifications

OUTPUT
Frequency compatibility50/60Hz
Output watts2400W
Output volt amp capacity (amps)10A 13A 15A 16A
Outlet quantity / type7*IEC320 C13
Outlet spacingany in.
INPUT
Recommended Electrical Service15A 125V/13A 250V/16A 250V/10A 240V
Input connection typeIEC 320 C14
Input plug featuresBlack or other
Input cord length (ft.)5 to 25
Input Housing length (in)12-1/4 to 72
Input cord gauge, type14AWG/3 SJT
Voltage compatibility (VAC)125
LAMP ALARMS & SWITCHES
Rock Switches with circuit breaker and lampLighted 2 position switch controls power to all outlets
Locking switch coverTransparent on/off switch cover prevents accidental turn-off
PHYSICAL
Unit Dimensions (HWL/mm)32*60*L/34*43*L
Material of constructionAluminum
Mounting accessories includedIncludes mounting clips
Receptacle ColorBlack or other
AC line cord colorBlack or other
Form factors supportedSupports vertical or horizontal mounting in rack enclosures, raceways, laptops cat and a variety of other applications
CERTIFICATIONS
Power TapIEC
Approved byUL C-UL CB



INSTALLATION GUIDE:
Before installation, you may need to get a IEC C13 Outlet. Decide your wire gauge, and ask store attendant for assistance what color of connectors you should get) from your local hardware or electric supply or home improvement stores.
Minimum tools required: A fine to medium fine philips screw driver, and a pair of scissors, and a pair of mid size slip joint pliers

1. Turn off electricity in the house

2. Decide where to place this unit

3. Choose the side you want the cord exit to choose IEC C14 Built in power strips

4. Match the color of the wires and secure the wire connection with proper wire connectors built in IEC C13 plug.(different wire gauge use different colored wire connectors)

  1. Mount the power strip where you want it to be:
    A) For power strips with mounting tabs on both ends: screw down the unit on the floor, wall or in your cabinet or on your rack, where you want it to be
    B) For power strips without mounting tabs, but to be mounted with clips, place the unit where you want it to be first, make marks where to install the clips, which normally should be placed about min 2”<power strips length away from each end, and then screw the clips down with screws provided. Then, snap the power strip in on the clips
  2. Push IEC C13 outlet plug into IEC C13 inlet power strips , and push switch to ON. Turn electricity back on, you are ready to go.

Note:
We also custom manufacture for our customers.
