5 To 14" 12 Outlets Hardwired Power Strip With IEC C14 Input
100PCS
MOQ
Negoation
Price
5 To 14" 12 Outlets Hardwired Power Strip With IEC C14 Input
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: SFC/OEM
Certification: UL C-UL
Model Number: SFC306-1213-IEC
High Light:

Hardwired 12 Outlet Power Board

,

12 Outlets Hardwired Power Strip

,

IEC C14 Input Hardwired Power Strip

Payment & Shipping Terms
Packaging Details: EXPORTED STANDARD CARTON
Delivery Time: 15-25Days
Payment Terms: T/T, L/C
Supply Ability: 10000PCS
Specifications
Material: Aluminum Alloy Metal
Color: Silver Grey| Other
Rated Voltage: 125V
Rated Current: 15A
Mounting: Metal Clips &Screw
Mountiong Method: Horizontal Or Vertical Installation
Product Description

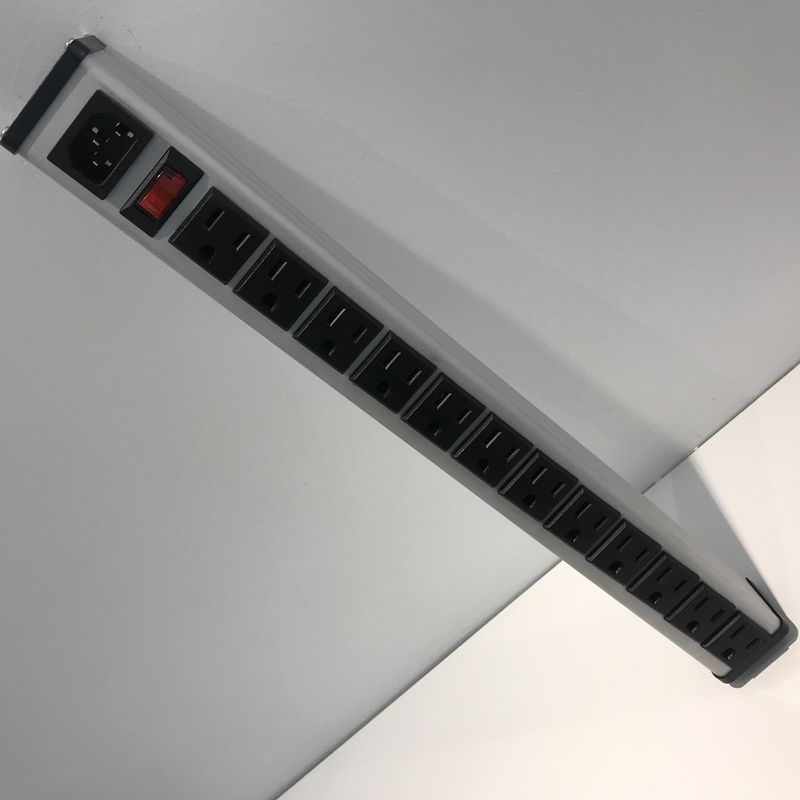

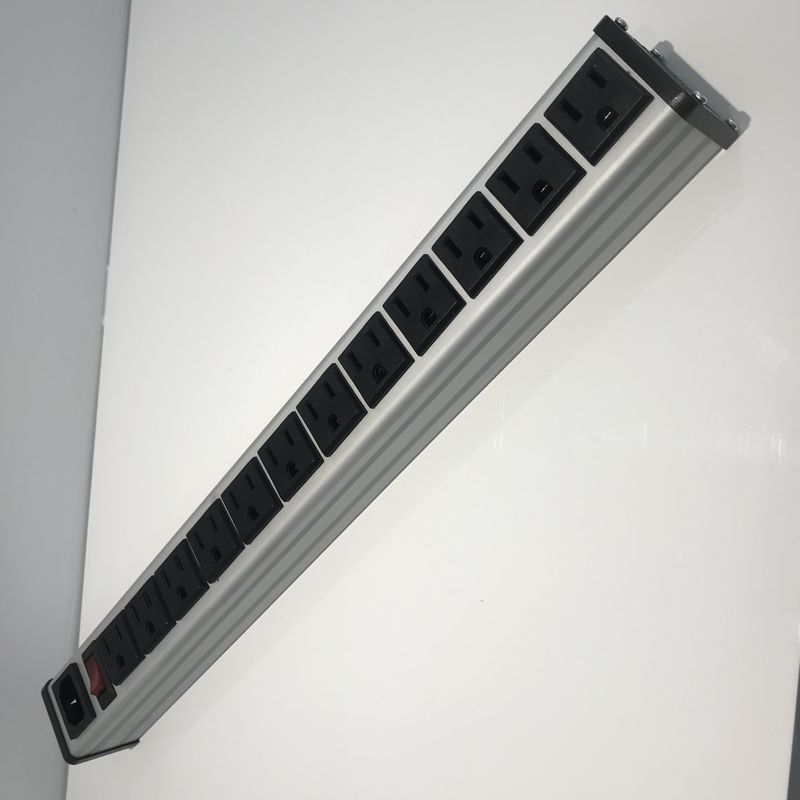

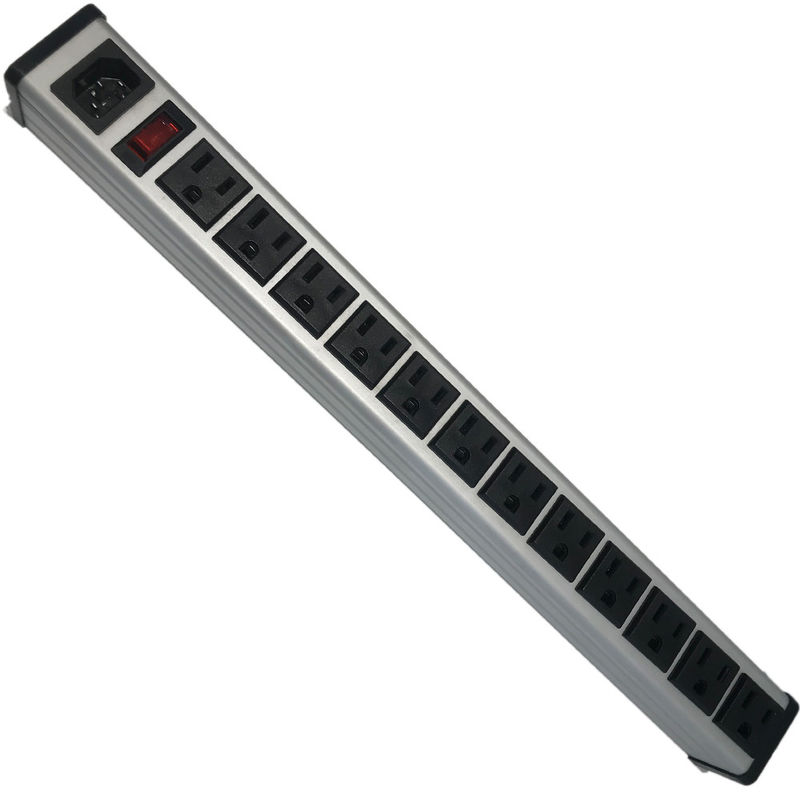

5 To 14" 15 Amp Metal Hardwired 12 Outlets Power Strip With IEC C14 Input & Switch

SFC-IEC-A1B series 5 to 14" 15Amp Hardwired Power Strip with 12 Outlets

This hard wired type power strip is good for installation in your kitchen, cabinet, on the rack and so on. It is not for normal wall outlets. There is no power cord and plug with this unit.



Features

  • 5" to 14” - Durable Aluminium alloy Metal Housing Power Strip
  • 12 Black ( white or grey or other) US NEMA 5-15R Outlets, Vertical or level Outlet Orientation
  • Hardwired without Power Cord for Mounting at Your Desired Location
  • One IEC C 14 Input on Each Side - (on the Top or Bottom Cover or Both Sides or Ends)
  • Electrical Ratings: 100-125V 60Hz 15A
  • UL C-UL Approved and Listed
  • Outlets 0.12" to 8.39" (3mm to 213mm) apart center to center
  • With IEC C13 Cable Easier put in C14 inlet and Faster Installation - Higher Efficiency

5 To 14" 12 Outlets Hardwired Power Strip With IEC C14 Input 05 To 14" 12 Outlets Hardwired Power Strip With IEC C14 Input 15 To 14" 12 Outlets Hardwired Power Strip With IEC C14 Input 2

Specification

Model #: SFC306-1213-IEC
Description: 5 to 14" 2 Outlet Hardwired Power Strip
Power Strip Measurement: L5 to14" x W1.614" x H1.255" (133 to 355 x 45 x 42) *
Outlets: 12
Outlet Color: Black, white, grey or other
Outlet Orientation: Vertical or level
Receptacle Type: NEMA 5-15R
Outlet Spacing: 0.12to 8.39" (3 to 213mm) (center to center)
IEC C14 Inlet: on Top or Bottom Cover or Both Sides or Ends)
Voltage Input/Output: 110-125V 60Hz
Current Input: 15A
Full Load: 1875VA
On/Off Switch: Yes
Circuit Breaker: 15A
Surge Protection: N/A
Indicators: Yes
Mounting Tabs: On both ends or bottom
Mounting Clips: Mounting Clips included


SAFETY WARNING:



1.Turn one outlet into Multiple-outlets with the rocker switch power strip. Simply plug the power strip into a three-pronged, properly grounded AC outlet, press the rocker switch to "on", the work indicator light (red), it means that the power supply is normally connected and work; otherwise, can not be used, should be timely repair or replacement by a professional, a licensed electrician or an electric engineer;The load power can not exceed the rated volt:125V power socket, the socket ground wire to do reliable connection with the ground;

2.When the all load power exceeds the rated output watts:1800W power of the socket or short circuit, the socket will automatically disconnect the power supply, in order to protect the power supply security;
3.Using power strip by certificated.
4.Since most electronics continue to use power when in standby mode, The rocker switch of power strip can be used to completely shut off electronics when not in use, helping to conserve energy.
5.Please inspect power strip regularly and pull out main plug wall socket and remove all appliances berfore clean the product.

6.This unit is for indoor use only.

7.This unit is not intended for use in or around wet or potentially wet areas including, but not limited to, aquariums, saunas, showers and fountains.

Risk of Electric Shock!



INSTALLATION GUIDE:

Before installation, you may need to get a IEC C13 Outlet. Decide your wire gauge, and ask store attendant for assistance what color of connectors you should get) from your local hardware or electric supply or home improvement stores.

Minimum tools required: A fine to medium fine philips screw driver, and a pair of scissors, and a pair of mid size slip joint pliers

1. Turn off electricity in the house

2. Decide where to place this unit

3. Choose the side you want the cord exit to choose IEC C14 Built in power strips

4. Match the color of the wires and secure the wire connection with proper wire connectors built in IEC C13 plug.(different wire gauge use different colored wire connectors)

  1. Mount the power strip where you want it to be:
    A) For power strips with mounting tabs on both ends: screw down the unit on the floor, wall or in your cabinet or on your rack, where you want it to be
    B) For power strips without mounting tabs, but to be mounted with clips, place the unit where you want it to be first, make marks where to install the clips, which normally should be placed about min 2”<power strips length away from each end, and then screw the clips down with screws provided. Then, snap the power strip in on the clips
  2. Push IEC C13 outlet plug into IEC C13 inlet power strips , and push switch to ON. Turn electricity back on, you are ready to go.

Note:

We also custom manufacture for our customers.
