Place of Origin:
Zhejiang,China
Brand Name:
SFC/OEM
Certification:
UL
Model Number:
SFC306-612

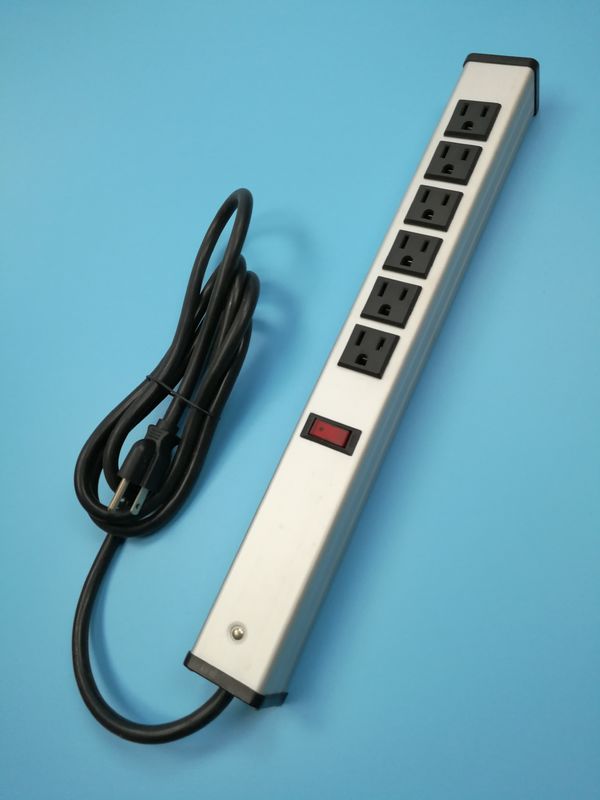

Multiple Outlets Power Strip with US 6 Sockets Built in Rocker Switch , PDU outlet Extension Cord Attached Plug
Features
Description
aluminium alloy UL approved power strips and with surge protective devices type 3 SPD. 4way,6way,8way,9way,10way,12way,15way,16w
SFC Jiashan Shengfeng Plastics & Electronics Co., Ltd SFC306-X series power strip offers 15 amp, 125V multi-outlet AC power distribution in a convenient 12 to 72 inch mountable housing. Offers horizontal or vertical power distribution in rackmount, raceway, laptops cart and workbench applications etc. Includes6 to 16 NEMA 5-15R output receptacles with any inch center -to-center spacing, 5-25ft AC line cord and lighted power switch with circuit breaker and locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments.
Specifications
OUTPUT | |
Frequency compatibility | 60 Hz |
Output watts | 1800 |
Output volt amp capacity (amps) | 15A |
Outlet quantity / type | 6* Nema 5-15R |
Outlet spacing | any in. |
INPUT | |
Recommended Electrical Service | 15A 125V |
Input connection type | Nema 5-15P |
Input plug features | Black or other |
Input cord length (ft.) | 5 to 25 |
Input cord length (in) | 12-1/4 to 72 |
Input cord gauge, type | 14/3 SJT |
Voltage compatibility (VAC) | 125 |
LAMP ALARMS & SWITCHES | |
Rock Switches with circuit breaker and lamp | Lighted 2 position switch controls power to all outlets |
Locking switch cover | Transparent on/off switch cover prevents accidental turn-off |
PHYSICAL | |
Unit Dimensions (HWD/in) | 12 1/4 to 72 x 1.75 x 1.5 |
Material of construction | Aluminum |
Mounting accessories included | Includes mounting clips |
Receptacle Color | Black or other |
AC line cord color | Black or other |
Form factors supported | Supports vertical or horizontal mounting in rack enclosures, raceways, laptops cat and a variety of other applications |
CERTIFICATIONS | |
UL1363 (Power Tap) | UL1363; UL1449 E336749 |
cUL / CSA (Canada) | UL & cUL |
WARRANTY | |
Product Warranty Period (U.S., Canada & Puerto Rico) | Lifetime limited warranty |
Important:
Please check the label on your device carefully for correct input voltage before plugging in your device. Incorrect voltage input could cause permanent damage to your device.
This Power strip does not have voltage converting capability. We are not responsible for damage of any kind for your device associated with use of this unit.
