Place of Origin:
Zhejiang,China
Brand Name:
SFC/OEM
Model Number:
SFC-IT-04-IEC

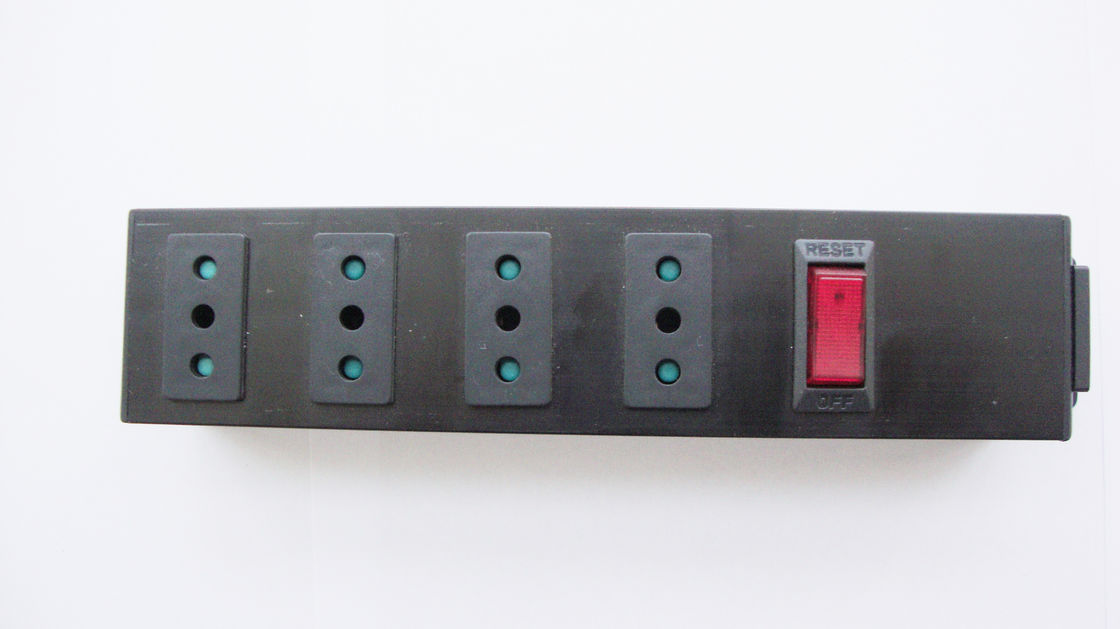

Italy/Chile 4 Outlet Mountable European Power Strip Bar With Surge Protector / On Off Switch and Connector IEC 320 Plug
SFC-IT-X series power strip offers 16 amp, 250V multi-outlet AC power distribution in a convenient 12 to 72 inch mountable housing. Offers horizontal or vertical power distribution in rackmount, raceway, laptops cart and workbench applications etc. Includes 1 to 25 output receptacles with any inch center -to-center spacing, 5-25ft AC line cord and lighted power switch with circuit breaker and locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments.
Specifications
OUTPUT | |
Frequency compatibility | 50 Hz |
Output watts | 2500W |
Output volt amp capacity (amps) | 16A |
Outlet quantity / type | 4 |
Outlet spacing | any in. |
INPUT | |
Recommended Electrical Service | 10A 250V |
Input connection type | connector IEC 320 C13 &IMQ plug |
Input plug features | Black or other |
Input cord length (ft.) | 5 to 25 |
Input cord length (m) | 0.5 to 25 |
Input cord gauge, type | H05VV-F3G1.0mm2 |
Voltage compatibility (VAC) | 250 |
LAMP ALARMS & SWITCHES | |
Rock Switches with circuit breaker and lamp | Lighted 2 position switch controls power to all outlets |
Locking switch cover | Transparent on/off switch cover prevents accidental turn-off |
PHYSICAL | |
Unit Dimensions (HWD/in) | 12 1/4 to 72 x 1.75 x 1.5 |
Material of construction | Aluminum |
Mounting accessories included | Includes mounting clips |
Receptacle Color | Black or other |
AC line cord color | Black or other |
Form factors supported | Supports vertical or horizontal mounting in rack enclosures, raceways, laptops cat and a variety of other applications |
CERTIFICATIONS | |
Quanlity Management Standard | ISO 9001 |
